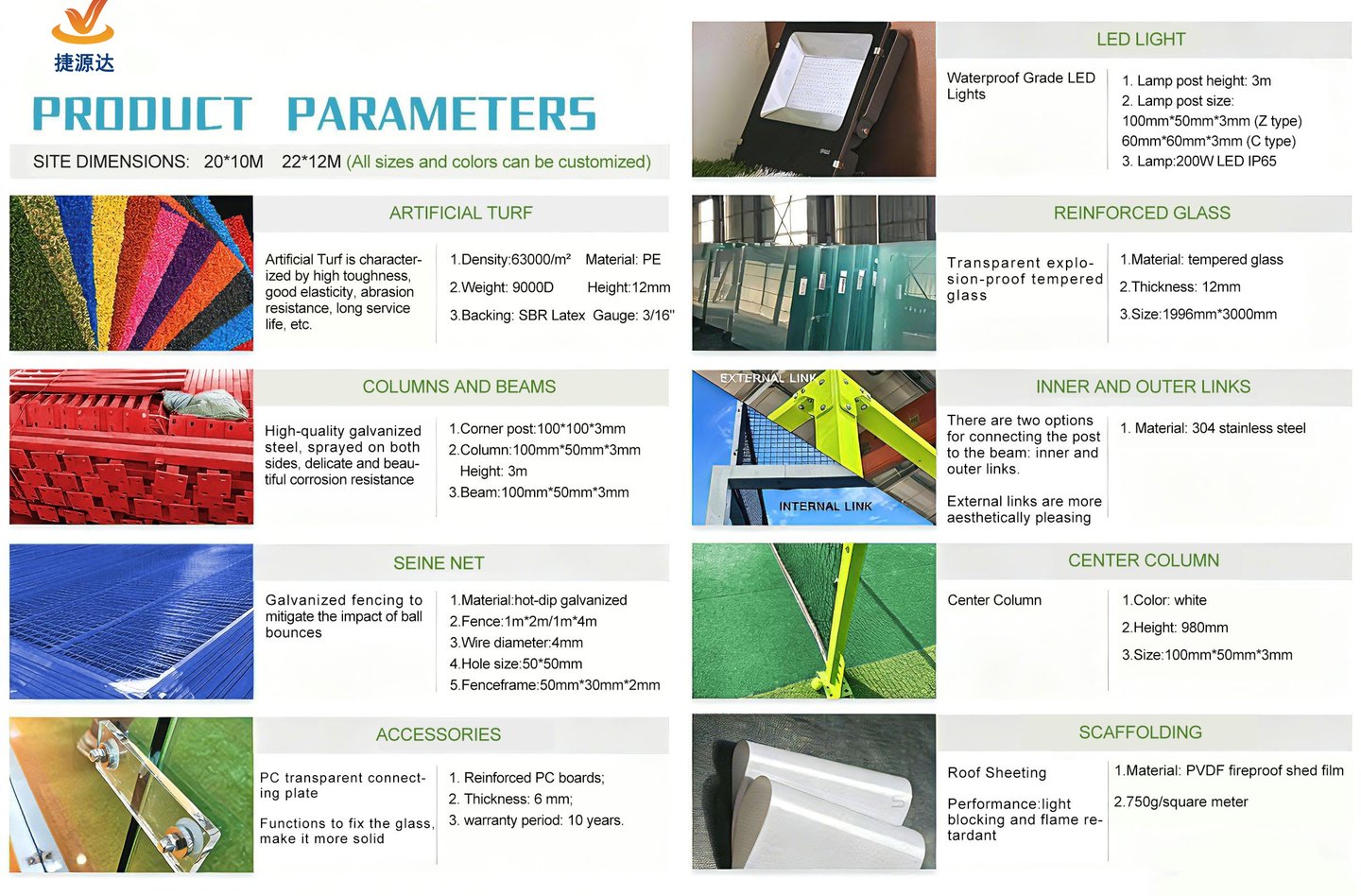

Roof Parameter conhguration

sizes

Roof: L22m*W12m*H8.8m

padel court: L20m*W10m*4m

column

120*120*3mm,H6m

material

Galvanized steel, (Spire roof made of aluminum alloy)

scaffolding

750g/㎡ PVDF material

artificial truf

Color: blue Gauge: 3/16”

Material: PE Density:63000s/ ㎡

Height:12mm Weight:9000D

Gauge:300s/m Backing:SBR Latex or PU (upgrade Choice)

tempered glass

Thickness:12mm

Size:1990mm*3000mm (18 pieces)

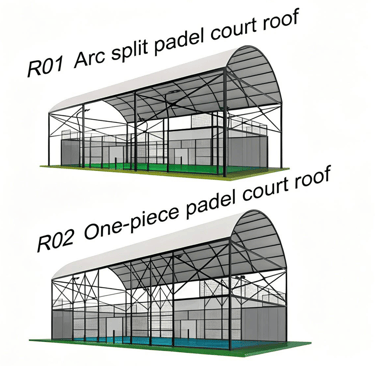

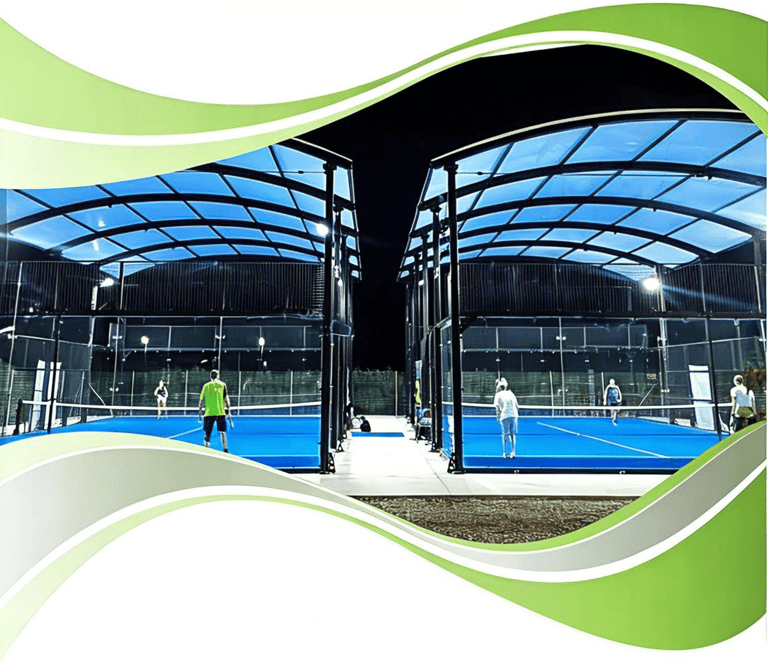

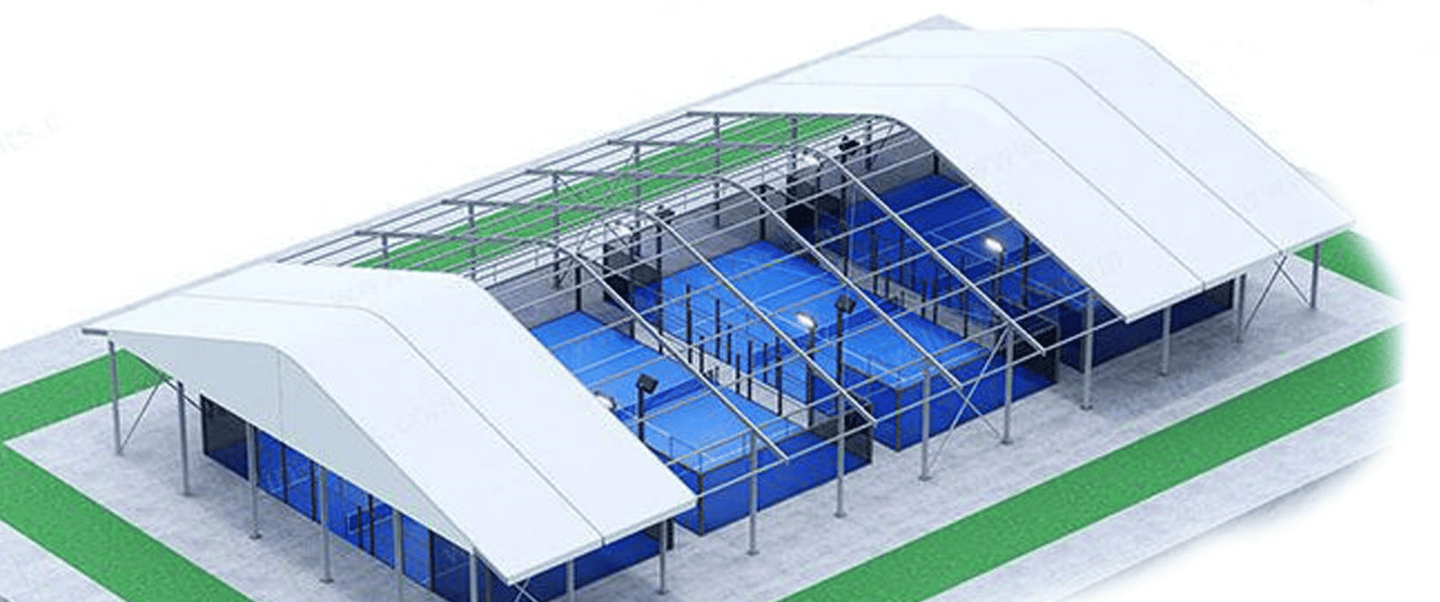

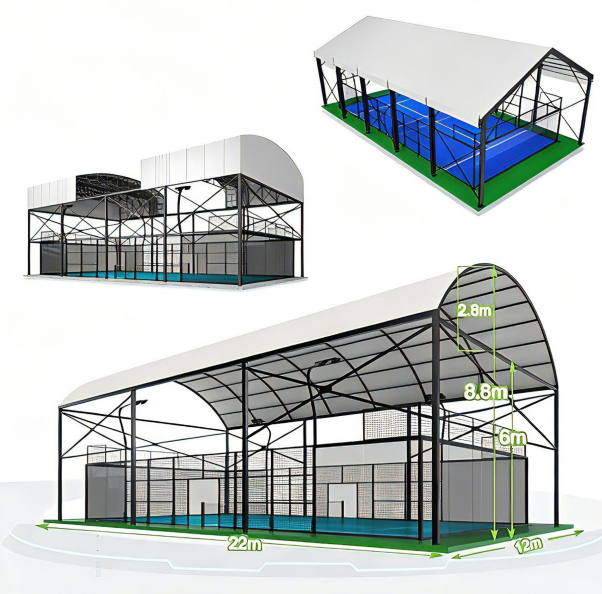

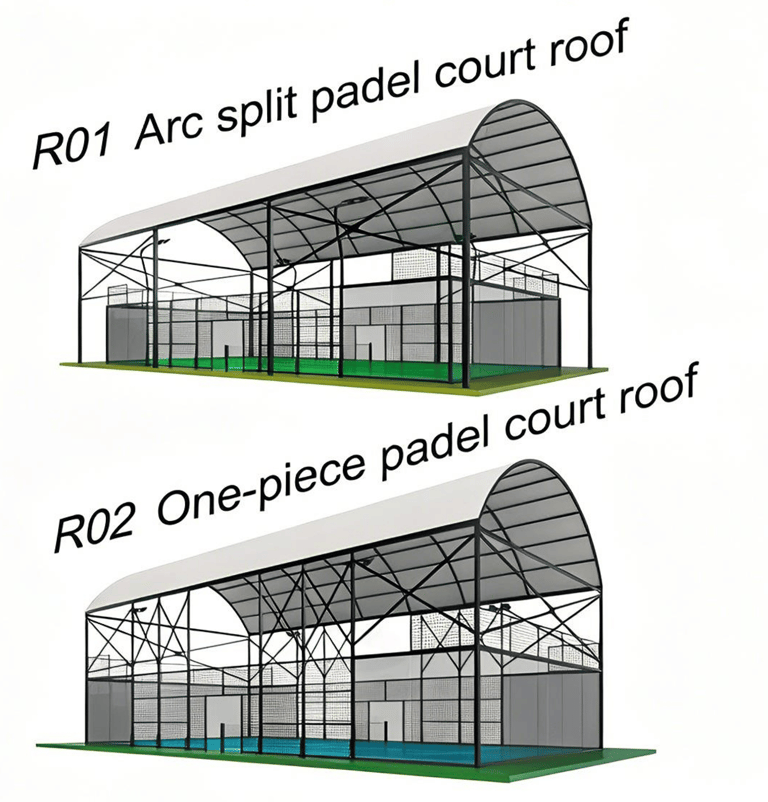

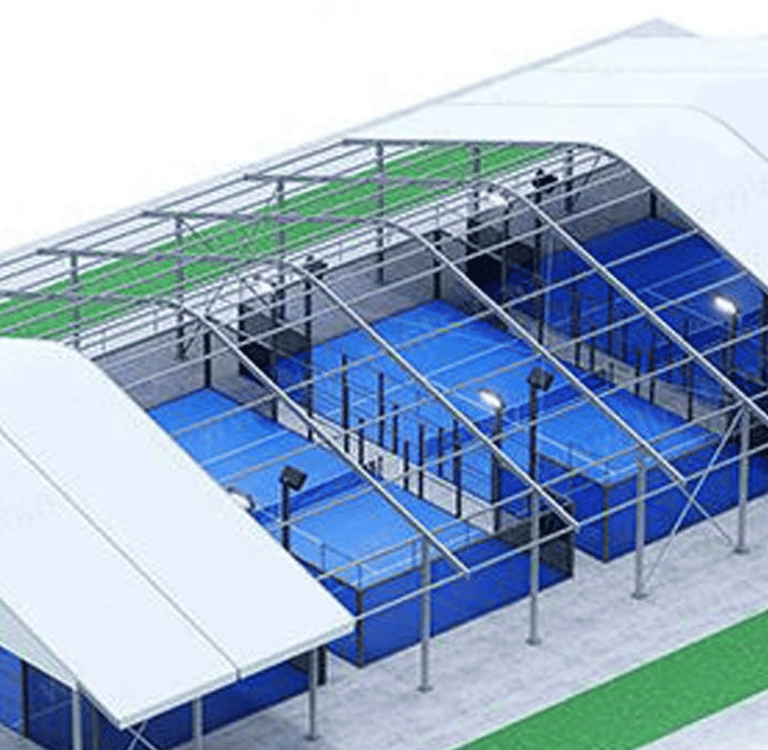

ARCH ROOF

PADEL COURT

Two types of roof sizes

About the product

R01 Roof Dimensions:

L22m*W12m*H8.8m

R02 Roof Dimensions:

L20.6m*W10.6m*H8.8m

Both products are availablein custom colors and sizes

The material used is galva-nized steel. Sturdy and du-rable, corrosion-resistant

Applicable Scenarios

R01 Arest area could beprovided under the shed.Ideal for customers withlots of space

R02 For customers withlimited space

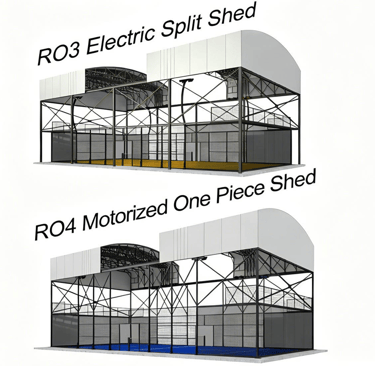

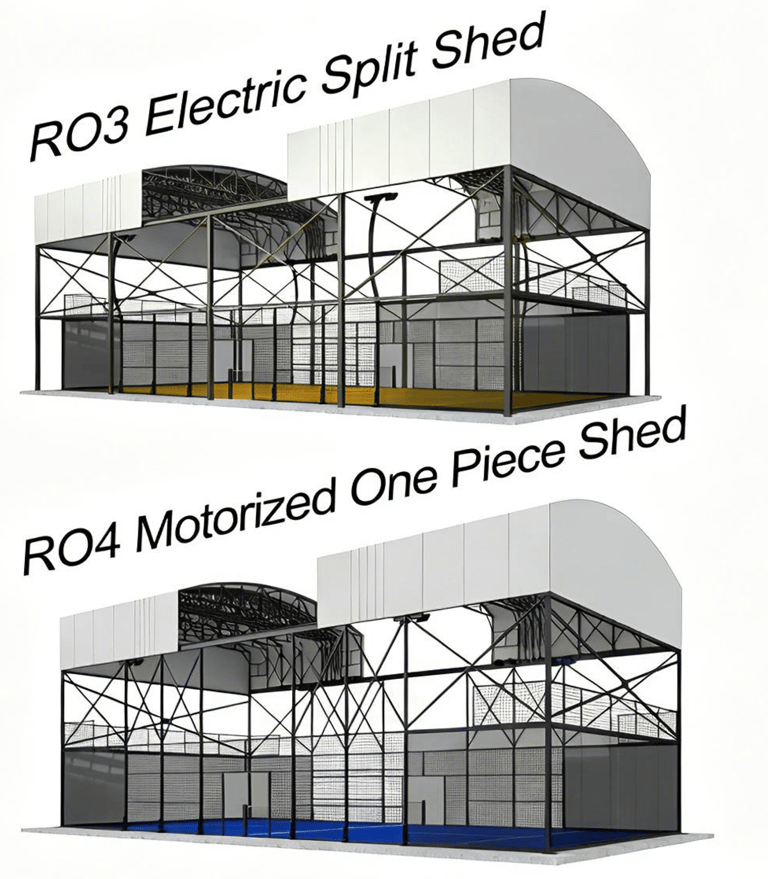

MOTORIZED OPEN/CLOSE ROOF

PADEL COURT

Two types of roof sizes

About the product

Applicable Scenarios

R03 Roof Dimensions:

L22m*W12m*H8.8m

R04 Roof Dimensions:

L20.6m*W10.6m*H8.8m

Both products are availablein custom colors and sizes

The material used is galva-nized steel. Sturdy and du-rable, corrosion-resistant

RO3 is suitable for cus-tomers with a lot of space,and a rest area can be setup under the shed

RO4 for customers withlimited spaceTwo models for rain orshine, high applicability

ALUMINUM ROOF

PADEL COURT

Product Size

R05 Roof Dimensions:

L22m*W12m*H8.8m

About the product

All products can be cus-tomized in color and size

Applicable Scenarios

Ideal for customers whoare looking for high qualitymaterials, close to thesea, more corrosion resis-tance and plenty of space

R05 Split Aluminum Roof

PRO is an upgraded version of QF

Comer columns are:100*100*3mm,H:4m

QF for external connections,PRO for intermal

connections

QF upper beam: 100° 50*3mm,4m long

Pro upper beam:100*100*3mm,4m long

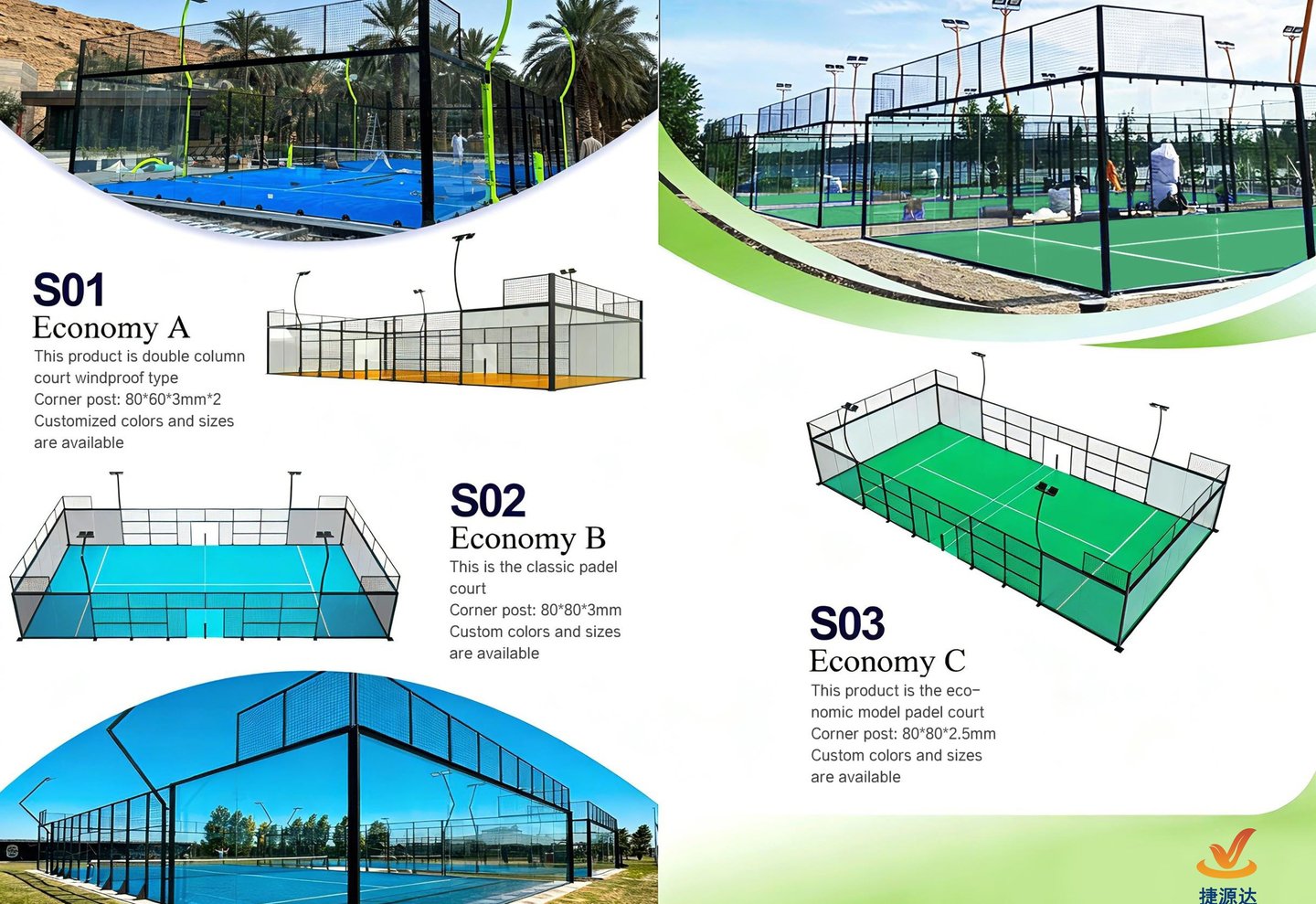

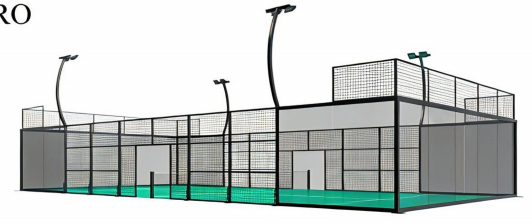

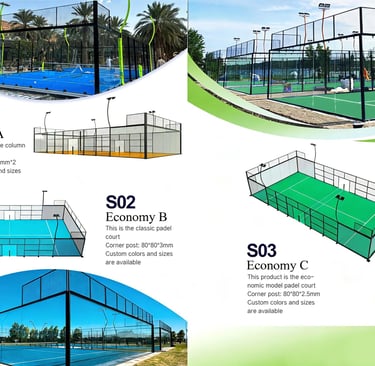

S04

QF

S05

PRO

S06

mobile version

This model is removable andeasy to carry and assemble

S07

suspension model

This product has very good ornamental properties

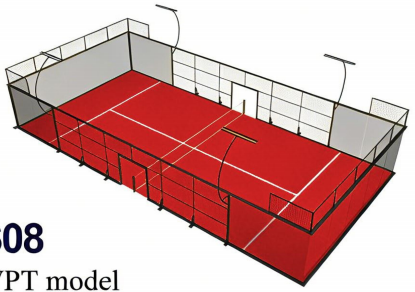

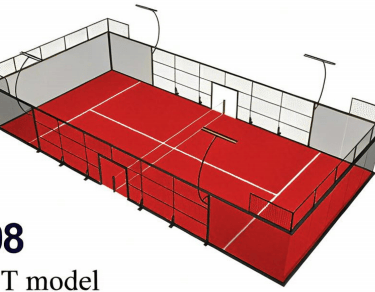

S08

WPT model

This model meets interne-tional event competitionstandards. Excellent spec-tacle,it is the upgradedmodel of P07

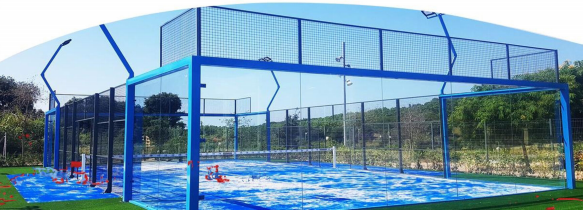

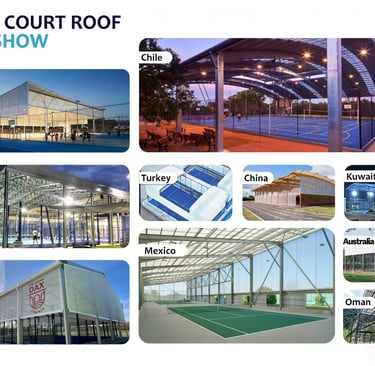

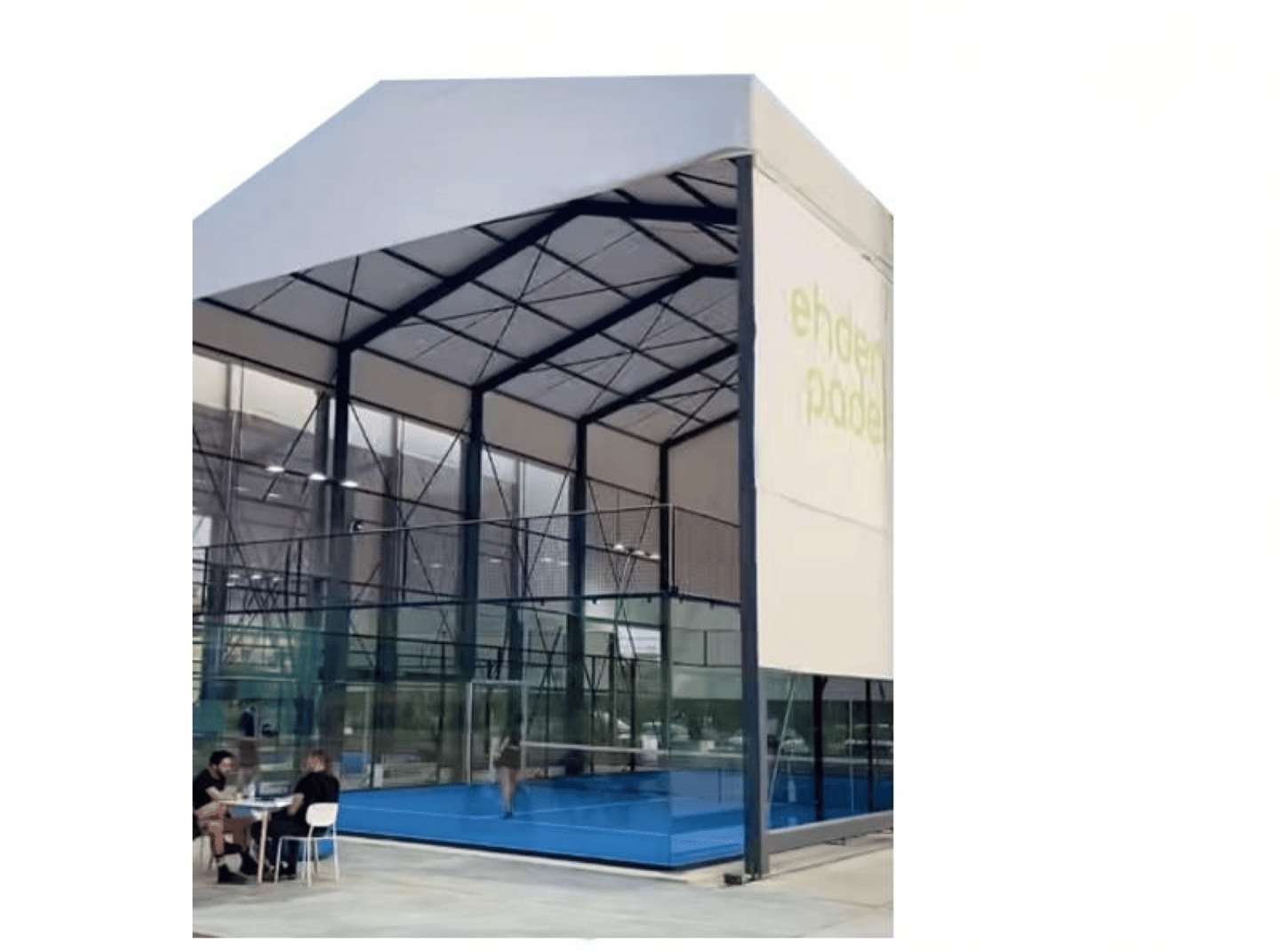

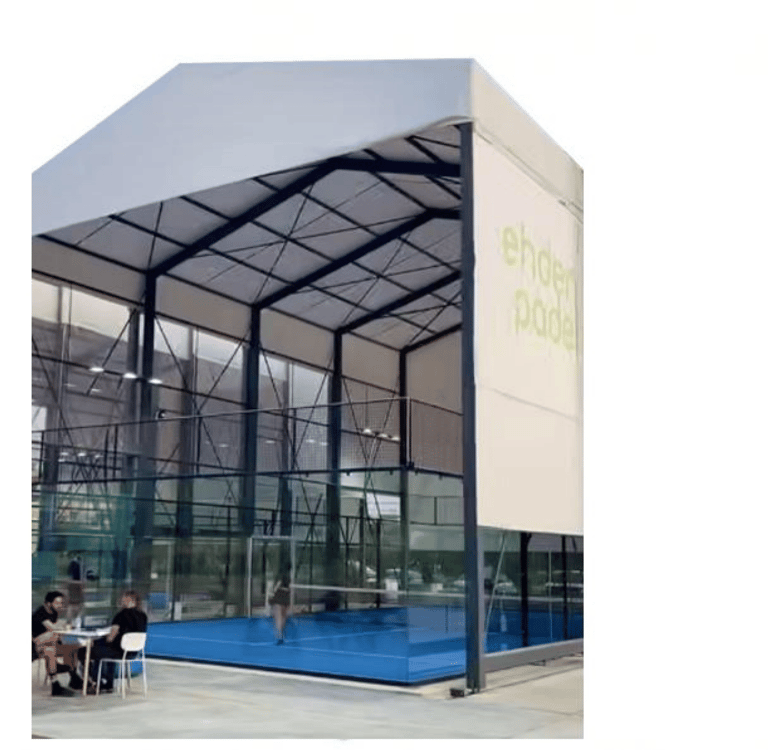

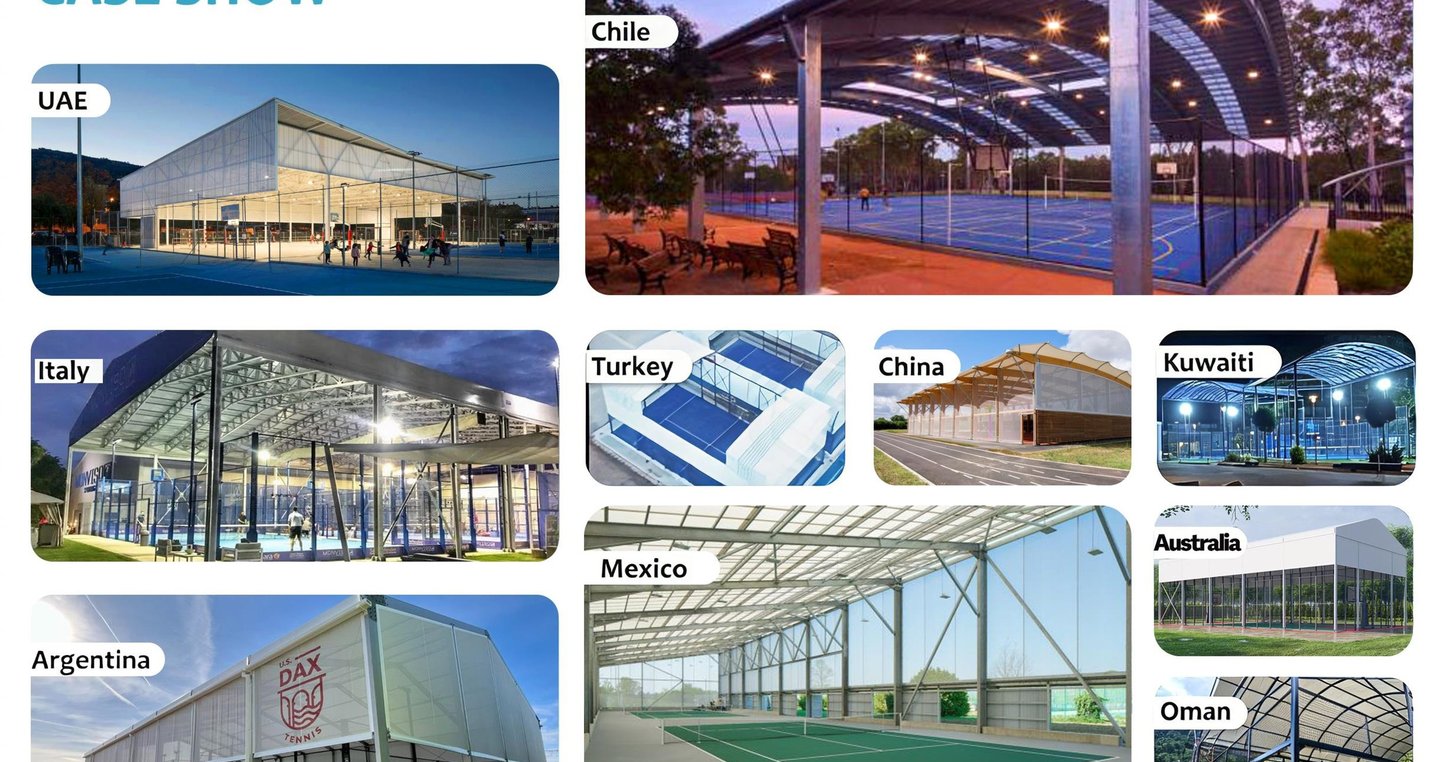

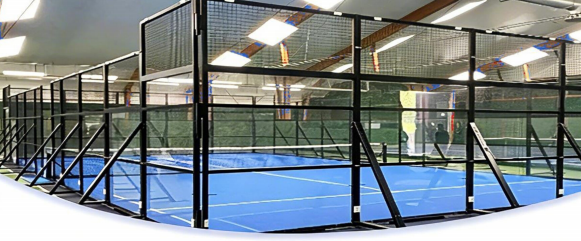

PADEL COURT ROOF

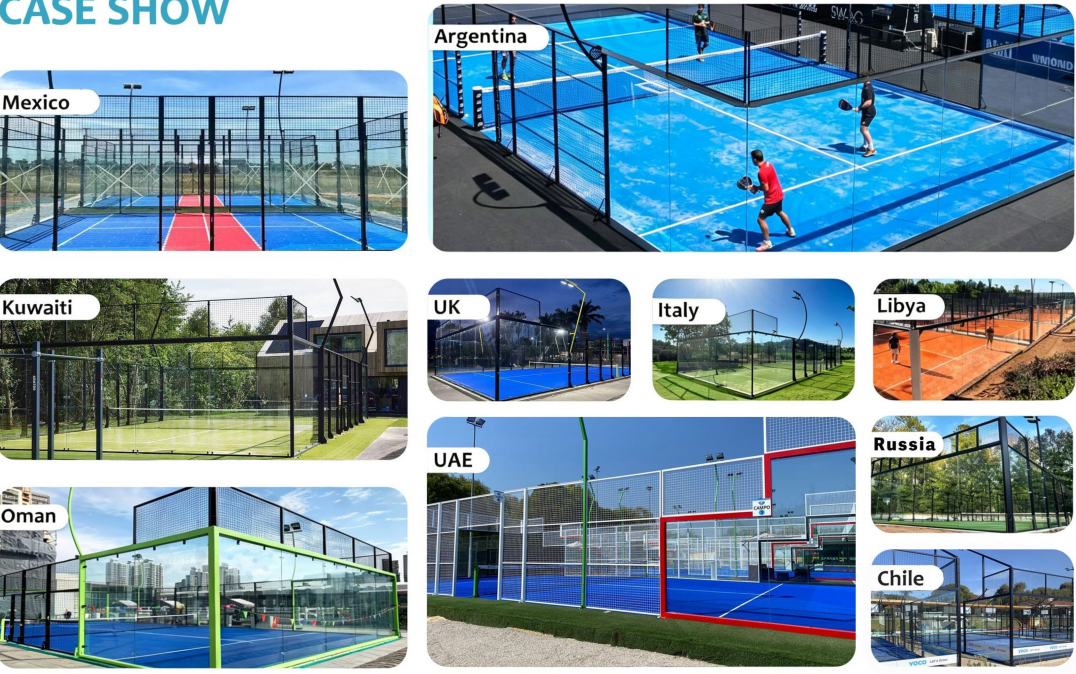

CASE SHOW

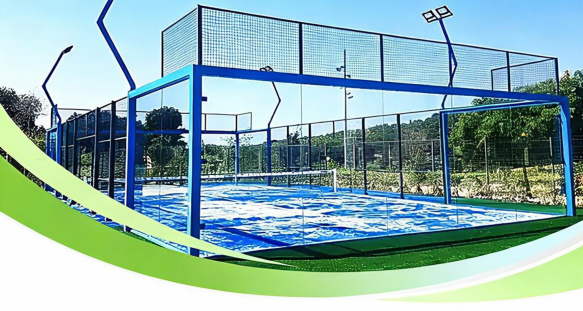

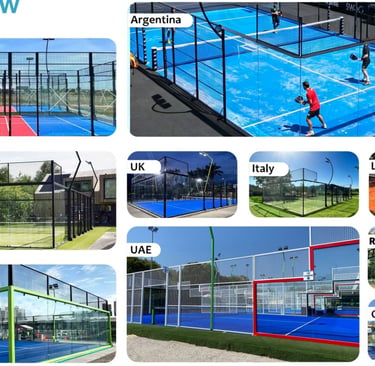

PADEL COURT

CASE SHOW

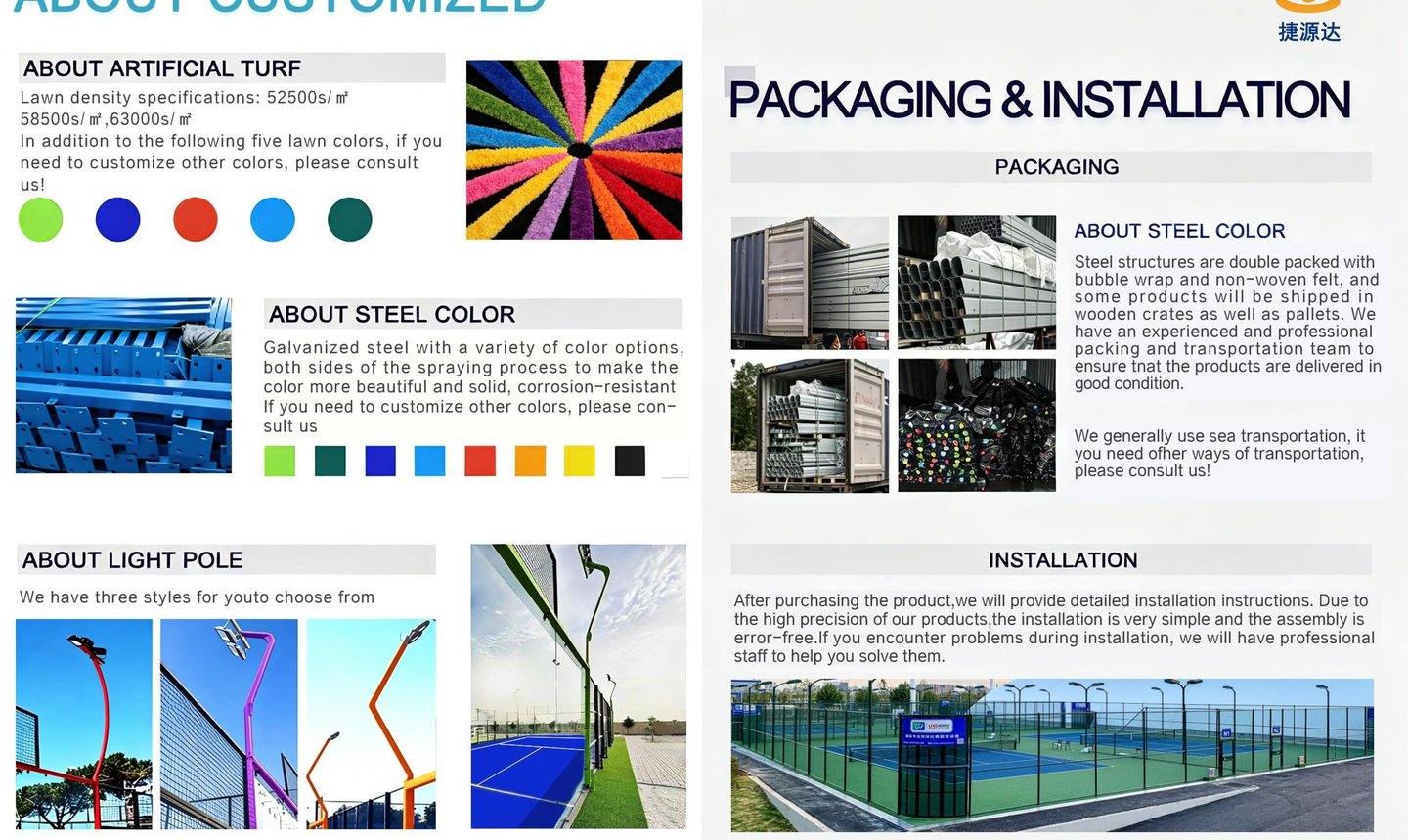

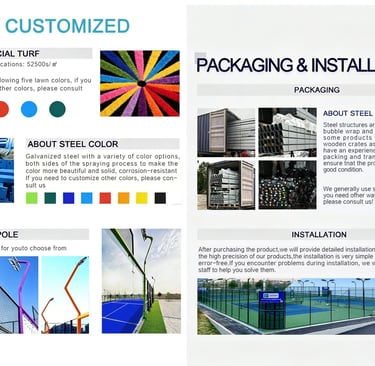

ABOUT CUSTOMIZED
